Paradox RPT1 Wireless Repeater Module Kit
Paradox RPT1 Magellan Wireless Repeater Module Kit will improve the range of your MG5000 MG5050, MG-6160 or MG-6130 systems. It also improves the range of the MG-RTX3 when used with any Spectra SP control panel. It does this by retransmitting information from zones, PGMs, wireless keypads and the control panel or console. Note that all remote control signals are always repeated. You can have two RPT1 per system. See your console or panel’s programming guide for programming instructions. The Wireless Repeater also provides one PGM and one zone input with two-way wireless communication with the system.
- Built-in transceiver (433MHz / 868MHz)
- Allows to extend the range of wireless communications
- Supports all MAGELLAN transmitters
- Select which zone, PGM and/or keypad signals are repeated
- Signal strength display
- 1 programmable 5A relay output
- Universal transmitter input (N.O./N.C.)
- In-field firmware upgrade via 307USB and WinLoad
- Wireless range in a typical residential environment:
– 75m (240ft) with 433MHz
- Compatible with MG5000, MG5050, MG6160, MG6130, MG6250 and RTX3
- Note: The RPT1 is not supported by the RTX3 when connected to an EVO panel
- AC input (16Vac, 20VA)

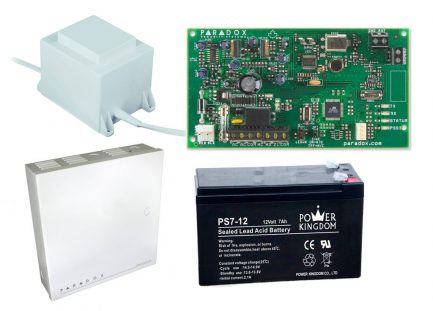

- This kit includes the Battery, Transformer and Metal Box.
